Android interface for nissan / infiniti 2012~ with 8" touch display (597)
- Brand:Lsailt
- Place of Origin:Shenzhen China
- Model:LLT-YFI-VER5.9.7
- Car model:INFINITI 2014-2018 QX50/QX60/QX70/QX80 NISSAN 2011-2017 QUEST 2012-2017 PATROL 2014-2018 Pathfinder 2013-2017 270Z 2013-2018 armada
| Description | |
| Android Configuration | |
| Resolution | 800X480 |
| Display | LVDS Digital |
| SYSTEM: | Android OS |
| RAM: | 4GB |
| EMMC: | 64GB |
| CPU MODEL | PX6 / RK3399 Hexa-core |
| WIFI: | Yes |
| BT: | Yes |
| MirrorLink: | Android and IOS |
| Play Store: | Yes |

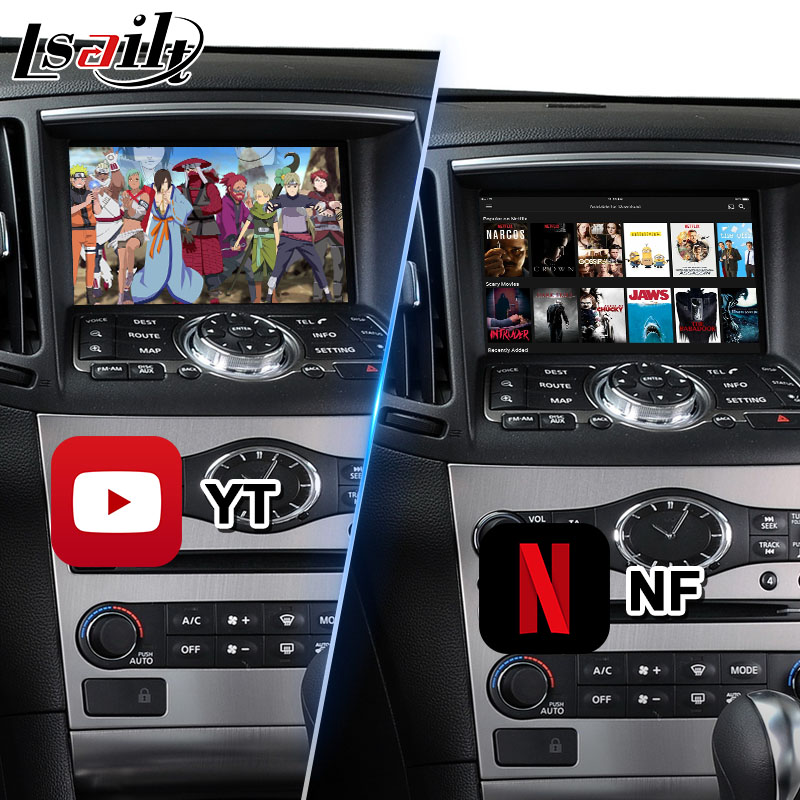

| Youtube: | Yes |
| Hardware Configuration | |

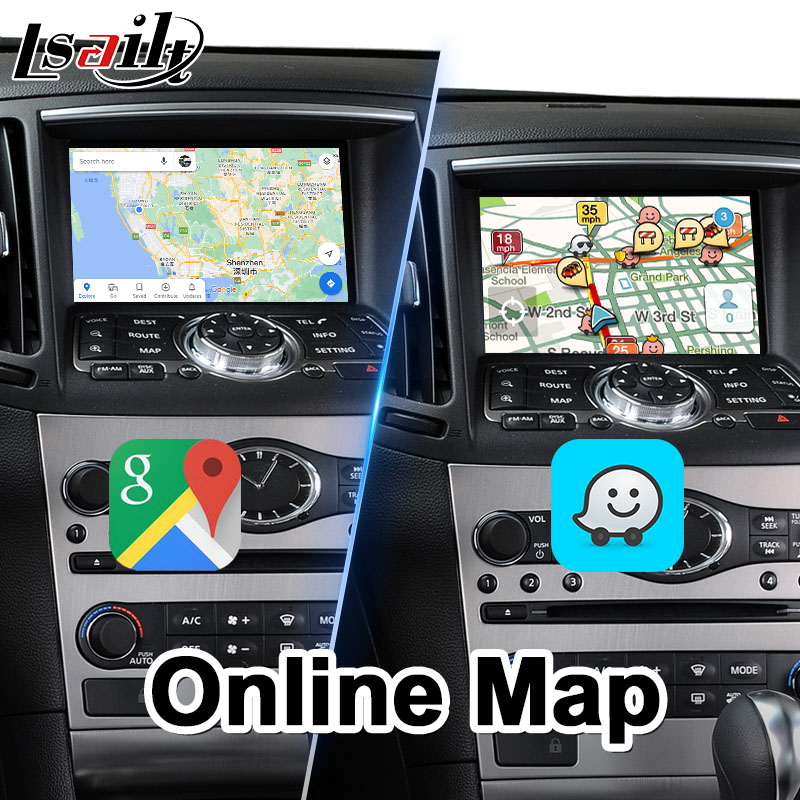

| TF Card : | Maps |
| Android sound | Original car |
| Navi Sound | Need to add small speakers |
| AV IN: | DTV and AV1 |
| HDMI OUT: | Included |
| Camera: | Front/Left/Rear/Right(guideline and radar ) |
| Use Operation： | Touch and Knob |
| Special Function | |
| MCU and APP Update: | Connect WIFI Using Internet |
| Cold start Time: | 40 seconds |
| Hot Start: | 6 seconds |
| Sleep: | Yes(Loop 5 times) |
| Sleep memory | Remember Last APP in parking |
| Installation Method | Plug and Play |

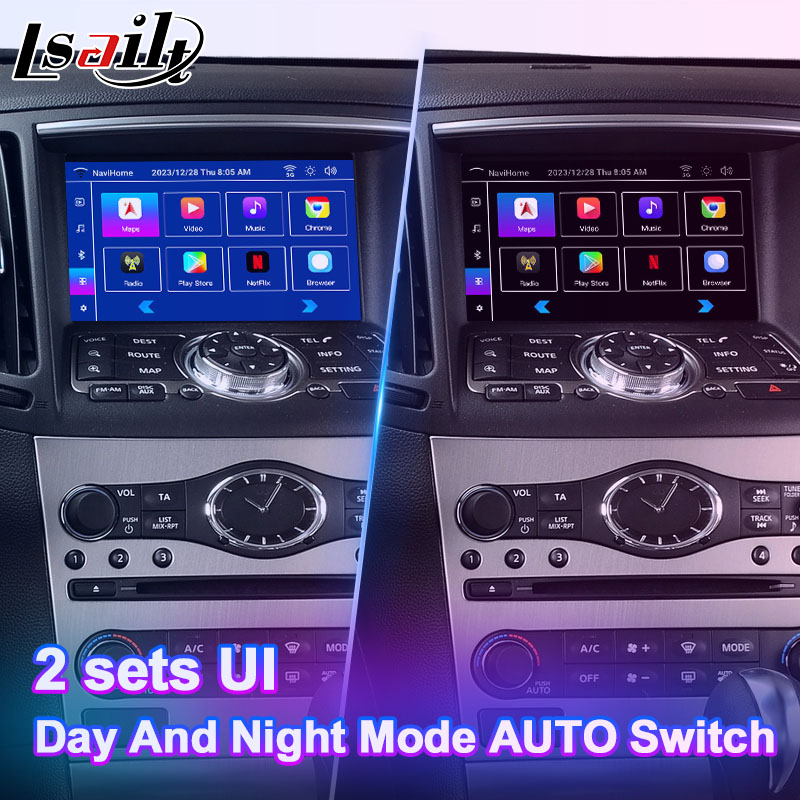

| Day and Night mode | AUTO(UI automatically switches between Day and Night) |
| Safe Driving | Driving automatically closes video image(4S VER) |

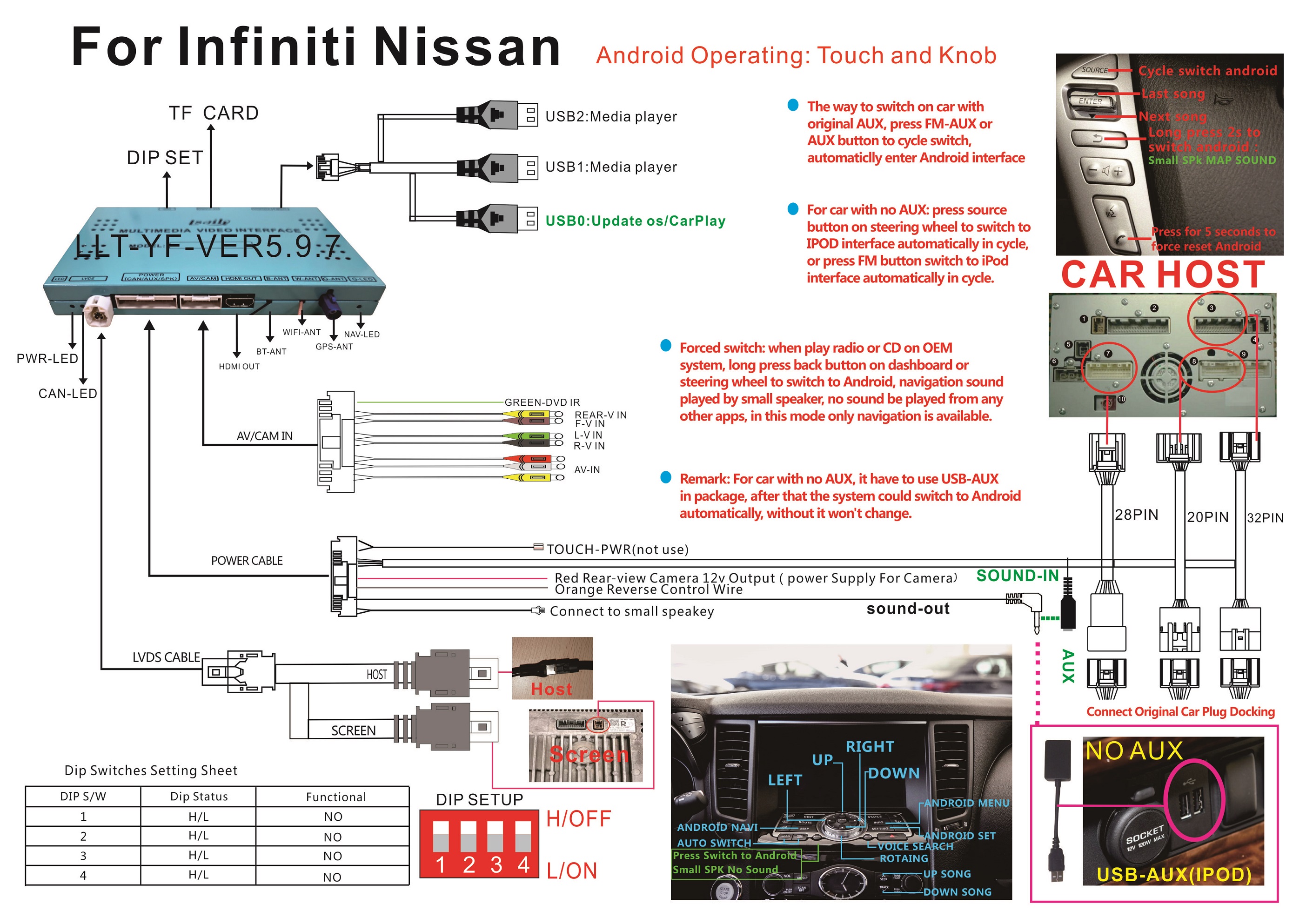

| Switching Method | |
| Switch Mode: | Use panel FM-AUX button to cycle Switch，FM-AUX automatic switching (sound and image) |
| Switch Mode1: | Use original car radio or other screen: Long press the BACK button for 2 seconds to switch Android. |
| Body Multimedia Control | |
| Microphone: | Use original car |
| Steering Wheel： | Support up and down song, Vol |
| Forced Reset | Panel and steering wheel phone button long press for 5 seconds system reset. |
| A/C DISP | Support in the Android interface display |
| Optional Function | |
| USB-AUX | (必须配套使用，否则无法自动） |
| ADAS/DVR | Support track reminder, recording playback |
| DTV | Knob/Mouse/ Touchpad operating |
| USB CARPLAY | Knob/Mouse/ Touchpad operating |
| Android Configuration | |
| Resolution | 800X480 |
| Display | LVDS Digital |
| SYSTEM: | Android |
| RAM: | 4GB |
| EMMC: | 64GB |
| CPU MODEL | PX6 / RK3399 Hexa-core |
| WIFI: | Yes |
| BT: | Yes |
| MirrorLink: | Android and IOS |
| Play Store: | Yes |
| Youtube: | Yes |
| Hardware Configuration | |
| TF Card : | Maps |
| Android sound | Original car |
| Navi Sound | Knob; automatic mixing original car;Mouse and touchpad; need to add small speakers |
| AV IN: | DTV and AV1 |
| HDMI OUT: | Included |
| Camera: | Front/Left/Rear/Right(guideline and radar ) |
| Use Operation： | Knob/Key operating |

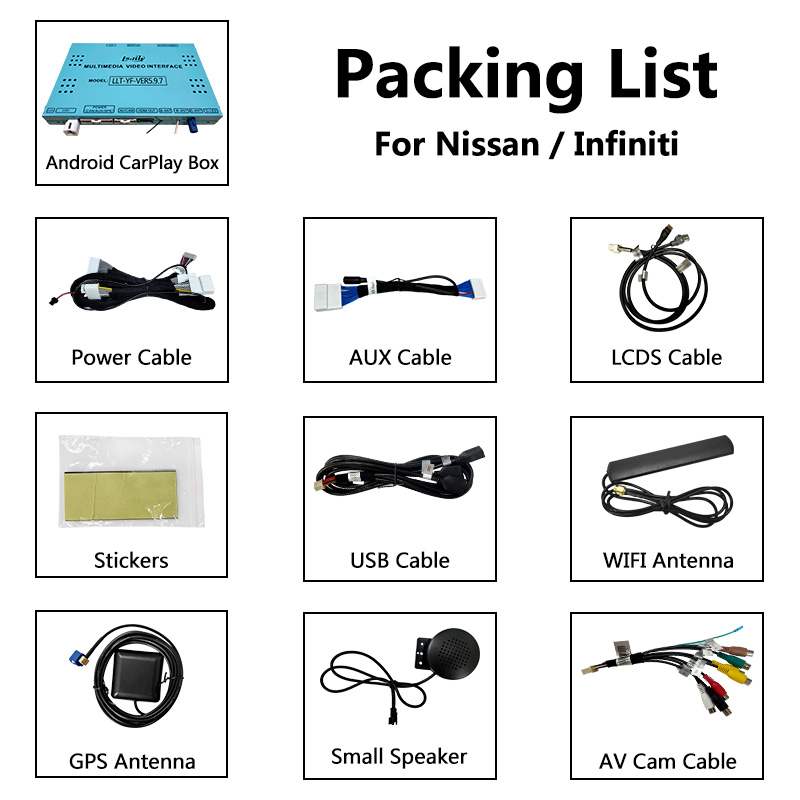

Packing list
|
Packing list |
Quantity |
|

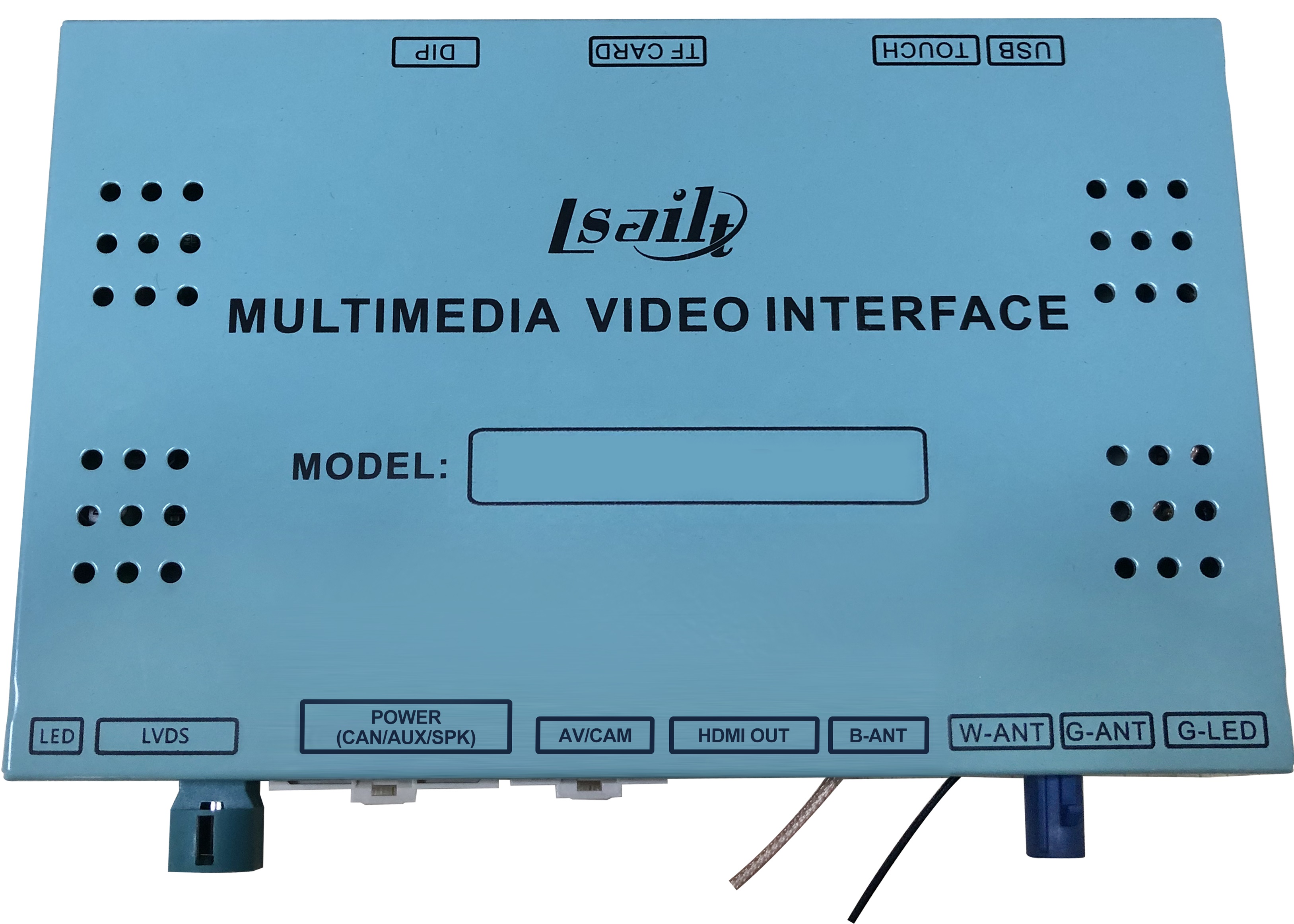

Multimedia video interface box |
1pcs |
|
LVDS connection cable |
1pcs |
|
Power cable |
1pcs |
|
DTV/V cable |
1pcs |
|
GPS antenna cable |
1pcs |
|
USB connection cable |
1pcs |
|
Touch connection cable |
1pcs |
| Touch adapter board |
1pcs |
|
Loudspeaker |
1pcs |
|
Magic sticker |
2pcs |
